Mini Lathe Versions

Harbor Freight Models

You are visitor number Hit Counter since 03/30/02
Copyright 2000-2002 by Frank J. Hoose, Jr. Home

Mini-Lathe    Mini-Mill    Bandsaw   Grinder  Anodizing   Lapping    Links   Projects   Safety     Premium Content

Mini-lathe:  Accessories   Adjustments   Capabilities    Chucks    Dial Indicators   Features   Getting Started   Glossary     Introduction   Materials    Modifications   My Shop   Operation    Reviews    Sieg Factory    Tool Grinding    Troubleshooting   Tuning     Versions

Versions:   3-in-1 Tools    9x20 Class Lathes    Busy Bee 7x10    CH-350    Chester Conquest 7x12
Clarke 7x12
   Cummins 7x12    Enco 7x10   Grizzly 7x12   Harbor Freight   Homier 7x12
Lathemaster 8x14    Micro-Mark 7x14    Northern Tool 7x12    Other Options

Harbor Freight:   33684 Green 7x10     33684 Red 7x10   33684 Old     39916 Green 7x10    44859 8x12    41292 8 1/2x18


Classic Green Harbor Freight 33684 Version

I have bestowed 'classic' status on this model, because it was the one that started it all. It was the standard model when the 7x10 interest group started out and was being used by Jose Rodriguez, Varmint Al and Ty Hoeffer. It was also my first mini-lathe.

You can find extensive information on this model on the Features page. I owned one, used it extensively and was very happy with it, but traded up to a 7x12 that I'm still using as of 2008.  Aside from the usual gripes, the main disadvantage with this model is the short bed. It is really 4" shorter than the 7x12 and is very limited on space for drilling operations.

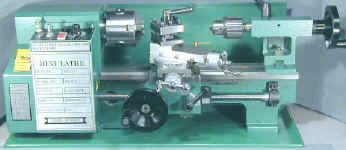

7x10 5_y.jpg (51179 bytes)


Harbor Freight Red 33684 Version

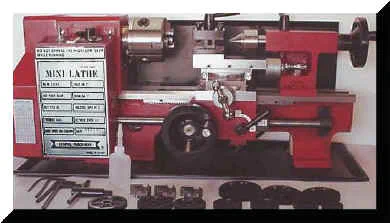

Dean Dempsey's shop has a version of the Harbor Freight 7x10 that is a bright red color.  I'm partial to the old 'hammered green' color, myself, but some owners think the green color is ugly.  Other than the color, the red version with SKU#33684 is apparently identical to the classic green version with the same SKU#.



Older Versions of Harbor Freight 33684

There is an older model of the Harbor Freight lathe which uses 3/8 inch tools and does not have the protractor scale on the compound. Very early models included metal gears for the leadscrew gear train but newer models use black plastic gears. Some users have expressed concern about the durability of the plastic gears.  They hold up fine for years of use as long as they are not subjected to extreme forces such as running the cutting tool into the chuck under power feed.  Even then, the most common failure seems to be stripping the keyway from the gear.  Some users have had this happen but have used epoxy to repair the damaged keyway.


HF SKU 39916 Version

Update 12/09/01: This version appears to have been discontinued.

This version was shipped by Harbor Freight for a period of a few months as a substitute when the 33684 version was out of stock.  During this time period, if you ordered the 39916 by number, you could get this version, which had some unique features such as the cam lock tailstock.

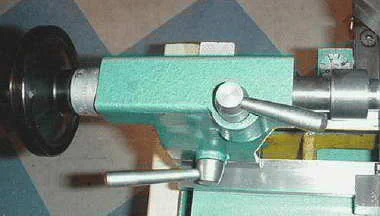

Some pictures posted by Bob Fandrich on the 7x10 interest group FILES section show a new version from HF that is green, but with a different control panel, crank handles and metal change gears. It uses 3/8" tools rather than 5/16". What's really interesting is a different version of the tailstock with a cam locking lever, similar to the one J.W. Early designed, but as a stock feature. Note that the tailstock crank also has a calibrated dial.  On the HF website, the description for this model (at least when I last checked) was identical to the description for SKU#33684 (the standard version).


Photos courtesy of Bob Fandrich

According to users on the 7x10 group, this version is sold by Harbor Freight as SKU#39916. Here's a report from an owner (chuknospam):

The lathe arrived today in a wood crate secured with nails and two plastic
crimped bands, many extra pieces were included in the form of a throughly
smashed tail stock handwheel. It seems that the Chinese failed to adjust the
tail stock properly allowing it to slide on the bed & subsiquently beat the
handwheel into a dozen or more pieces. The live center was rolling around in
the bottom & had a blunted nose. Chip pan was well bent as was the rear chip
guard. Other than that...

Included were a complete set of metal change gears, these were stamped with
the number of teeth. The gears were black plated & had been tumble finished,
they are smooth & free of burrs & sharp edges.

The tailstock hand wheel & apron hand wheel are a Bakelite type plastic. The
Cross feed hand wheel is round aluminum as is the compound wheel. The
crossfeed dial has embossed numbers & is calibrated .002" per division. The
crossfeed dial doesn't have a slip dial like normally found on larger lathes.
The compound has a serrated wheel with a spinner handle. The spinner is
useless due to the small diameter wheel. The numbers are embossed & it is
calibrated .001 per division. The tailstock also has a calibrated embossed
dial that reads .001 per division. All embossed dials appear to be satin
chrome plated and are easy to read.

The tailstock is MT#2, it secures to the bed with a camlock lever on the
rear. The nut that secures the tailstock locking plate to the bottom of the
tailstock sits in a channel that allows you to adjust the tail stock cam lock
lever position by adjusting the nut a flat at a time. The setting is retained
since the nut sets countersunk in the channel. One interesting note here, the
tailstock offset is made by lossening a capscrew Under the tailstock! There
are no jack screws on the tailstock (or calibrations) to force it left or
right of center. A royal pain if you want to cut tapers. The tailstock shaft
is secured with a lever on the top of the tailstock that cams a slot milled
into the tailstock shaft. There are no divisions on the tailstock shaft. The
tailstock can be allowed to overhang the bed for a little more distance
between centers.

The threading dial is 32 teeth, has a brass gear and a ball detent that
engages the side of the apron. The pivot bolt that holds the threading dial
is an ordinary bolt as you rotate the threading dial the bolt lossens and
requires snugging to keep every thing in line. It should be replaced with a
shoulder bolt.

The chuck is secured to the spindle with three studs, the spindle has three
holes for securing the chuck. The spindle appears to be very well machined,
it is bored MT#3.

The cross slide & compound were loosely adjusted & require that the gibs be
adjusted. There was lots of loose hardware everywhere, including the nuts
that secure the chuck, the cross slide screw support bolts. The turret tool
holder has a one way detent like that on a revolver and allows one to rotate
the tool holder through 4 indexed positions. Useful only if the compound is
square to the lathe axis. There is no protractor on this compound.

The speed control has a white push button that closes a set of contacts which
applies power to the lathe motor. You are required to have the speed control
knob at the lowest setting for the motor to start. This is normal for most
variable speed DC motor applications. There is a toggle switch for forward &
reverse spindle direction. The slowest spindle speed seems to be less than
100 RPM. An interesting note, in the manual there is reference to a slow
speed interlock to prevent heavy cuts at slow speeds (Chinglish) In fact
there is a load sense, if too much load is placed at slow speeds (under 400
RPM), as in a heavy cut or grabbing the chuck with your hand, the circuit
will trip the relay requiring that you hit the white button & start the speed
knob at low again. This is a good thing in DC brush motor application, it
prevents burning out individual armature windings as a result of the brushes
stalling or nearly stalling & overheating a winding.

Included with the manual was a test report listing QC measurements made prior
to shipping.

While the tailstock, speed control and handles on this model seem to be improvements over the standard model, the 39916 version only has 3 chuck mounting holes in the spindle.  This is important to note, since the 33864 and the Grizzly 7x12 have 6 mounting holes, enabling you to mount the J&L 3" 4-jaw chuck directly to the spindle.  This version also does not have the protractor scale on the compound.

A report on the 7x10 Egroups (02/06/01) states that the 39916 has a smaller diameter hole through the spindle:

I  just ordered that lathe at the $329 price and got it Thursday, after only nine days. Only thing is, I was sent the 39916 instead of the 33684. From what I've read here, I came out with the better deal in some regards. But, there was one dimension that will probably do me more harm than the shorter bed length compared to the Grizzly (which I had considered too, like you): the hole through the spindle is smaller on the machine they sent me than it is on the Grizzly or the HF 33684 (it's .6?? versus the .8?? on the Griz and 33684. I'm in the house with pneumonia and the lathe is in the shop -- I don't remember the precise hole diameter). This will screw me up because I bought the lathe for my fishing rod building business to make 3/4" dia. reel seats. The hole through the spindle of the lathe I received is too small, whereas the other would have been fine. I was left with the dilemma of sending the whole thing back or not, which I chose not to do because it was in such great shape and was very accurate from initial tests with the dial indicator. Only damage was the live center, which had a smashed tip. HF is sending a replacement of that -- one of these years (they said 8 weeks). I'll point out that I haven't put the caliper to the hole to test it for sure -- I'm basing this on the spec sheet that came with the lathe.

The speed control apparently has a relay that controls the motor.  This is probably done for safety reasons so that the lathe does not start up suddenly if the power is interrupted for some reason (a popped breaker, for example) and then restored.

It has been said that if you order SKU#39916 you will get the cam-lock version for $399 and that HF will not honor any sale prices that may be advertised for #33684.   However, some owners who ordered SKU#33684 ended up getting SKU#39916 at the sale price.  I exchanged email with Harbor Freight customer service about this.   Here's what they said:

There are two different item numbers that we sell. One is item 39916, and the other is item 33684. If a customer orders  33684 and it is on backorder, Harbor Freight will send the 39916. It is a backup.


Harbor Freight 8 x 12 Lathe

(08/31/01)

8" x 12" PRECISION MINI LATHE Harbor Freight 8x12 Lathe, SKU 44859

A relatively new addition to the Harbor Freight catalog, the 8x12 SKU 44859 is currently priced at $499.99 and has the shipping weight listed as 260 lbs.  It is certainly bigger and heavier than the 7x10 which has a shipping weight of 89 lbs. The standard chuck is a 4" 3-jaw compared to a 3" 3-jaw on the 7x10.

Like the 9x20 and 8 1/2 x 18, the speed is adjusted by changing belts, so it lacks the convenience of the continuously variable speed control of the 7x10 and Grizzly 7x12.   Also missing, is the quick change gear box for thread cutting that is found on the 9x20 lathes.

I don't know much about this lathe, since I have not yet seen any reports from anyone who owns one, but there has been some discussion on the 7x10 group recently which will shed some light.

The HF 44859 8"x12" lathe found here

http://www.harborfreight.com/cpi/ctaf/Displayitem.taf?itemnumber=44859

is, according to HF tech support, the same lathe platform as the HF
7"x10" 33684. I called them today and asked that very question. I
also asked if it had reverse. The tech said that it did. He also
said that for the most part the accessories from the 7x10 fit the
8x12, although none are specifcally listed for the 8x12 on the HF
website.

I think many people have been confusing the 8"x12" with the 8.5"x18".

http://www.harborfreight.com/cpi/ctaf/Displayitem.taf?itemnumber=41292

This is clearly not the same lathe as the 7x10.

The local HF stores here do not stock the 8x12 so I can't look at one
myself to verify this information, but it seems that it is an
upscaled 7x10. Hopefully the tech was not wrong.

If this is indeed an upscaled 7x10 then the 44859 may be a viable
contender to the Grizzly or Micromark if or when it goes on sale.


Harbor Freight 8 1/2 x 18 Lathe

Harbor Freight also sells a  8 1/2 x 18" model (SKU 41292) for $699.

HF yellow.jpg (14180 bytes) Harbor Freight 8 1/2 x 18, SKU 41292

This is an altogether different beast from the 7x10.  JW Early, a professional machinist who owns several lathes, including several 7x10s, a Grizzly 7x12 and a 9x19, has this to say about it:

The 8x12 while a nice heavy machine is very lacking in specification to the
7x12. If you want a bigger machine than the 7x12 then go to the 9x20 as it
is both a better machine than the 8x12 or 8-1/2x18 and a much better value
as well. Get the spec sheets on all the machines, compare features and
equipment per dollar spent and then check what is available as add ons for
them. I think when you thoroughly check it all out you will see that the
7x12 and then the 9x20 are the value leaders in their size class. All the
other machines in these sizes are either lacking in specification or
overpriced or both.

Here are some additional comments by Jack Fusilier:

The logical next step  in size from the 7x12 is the 9x20, IMO.
This is so close in price to the 8x18 that the 8x18 is rendered
both superfluous and inadequate in comparison to either
the 7x12 or the 9x20.
The 9x20 offers QC(quick change) gearshift and includes both
steady rest and follower rests, as well as both 3 and 4 jaw chucks.
Power is supplied by an ac capacitor motor and a conventional
pulley and belt drive system for speed control.   It is large enough
for  modification by add ons from larger lathes.

The  only deficiency is the lack of a tumbler reverse gear for
cutting left handed thread and powered cutting in the direction
away from the headstock.  This is a relatively minor problem,
however, and installation of a tumbler reverse is a excellent easy
and practically foolproof first project for a machining wannabee.
Several list members have done this, and information and help is
readily available on this list and on the 0x20 list.
