Enco 7x10 Version

Enco offers a yellow 7x10 that appears to be similar or identical to the HF 33684 version.

Enco 7x10.jpg (46705 bytes)


MicroMark 7x12 Version

Update 09/08/02
Micro-Mark has discontinued their 7x12 version and is now the exclusive U.S. distributor for the Sieg-made 7x14 version
End of Update

MicroMark sells a red 7x12 that looks similar to the the Grizzly 7x12.  One important difference, though, is that this version has true inch calibrated leadscrews which can provide more accurate dimensions when using the calibrated dials to advance the cutting tool.


At the time of this writing (7/09/01) is on sale for $499.95, regular price is 569.95. Here are the specs from the Micromark web site:

Swing over bed: 7.087 inch diameter
Swing over carriage: 2.250 inches diameter
Distance between centers: 11.800 inches
Main spindle speeds: variable between 100 and 2500 rpm
Hole through main spindle: .787 inch diameter
Main spindle taper: MT-3
Carriage cross-feed travel: 2.560 inches (.050 inch per turn)
Compound slide travel: 2.160 inches (.050 inch per turn)
Tail spindle travel: 2.125 inches
Tail spindle taper: MT-2
Motor: 250 watt (1/3 hp) output, 110vAC, 50/60 Hz
Thread cutting: 12 to 52 TPI in 18 steps
Overall size: 12 inches high x 12 inches deep x 28 inches long
Weight: 78 pounds (basic machine without accessories).


Northern Tool 7x12 Version

Northern Tool, another discount importer, offers a 7x12 version at $499 plus shipping.  I don't have any specific info on this one, other than what's on their web page.


Note: photo from NT web site shows a 7x10 model, but specs indicate a 7x12 [F.H.]


Clarke 7x12 Version (U.K.)

The 7x12 is sold in the UK under the Clarke brand name and is available from Machine Mart.


Here's some more leads:

mini lathes are available under 3 different names in England. Chester Conquest, Warco, and Clarke distributed by Machine Mart. all are identical and come in metric or imperial versions, a conversion from one to the other is about 25. if you want accessories then look at all 3 catalogues as all charge different prices. i bought a faceplate for 18 from clarke but it was 40 from chester u.k

DAVID WILLIAMS BOLTON ENGLAND


Chester Conquest 7x12 (09/30/03)

Robert Moores sent me the following information and photo:

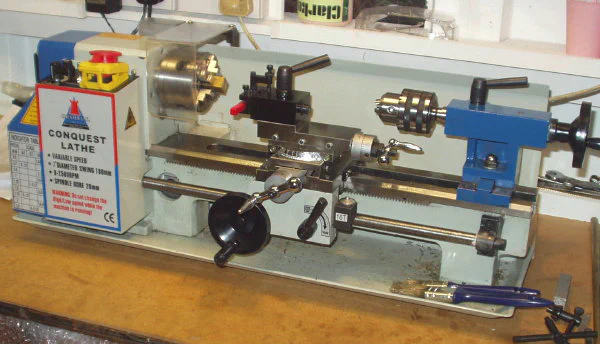

I bought a Chester Conquest lathe in June this year. (www.chesteruk.net). The lathe cost 395 including delivery and 17.5% tax. These lathes are fitted with a QCTP as standard. A picture of the lathe is attached. As David Williams says in his Clarke description, those of us in the UK have to shop around for accessories - he mentions a faceplate from Machinemart costing 20, and one from Chester costing 40. Chester sell a 4 jaw independent chuck for 45, what seems to be exactly the same chuck costs 80 from Machinemart.(www.machinemart.co.uk). We need something like the Little Machine Shop in the UK.

Careful examination of the following photo suggests that this model is the same as the early model 7x12 sold by Homier and currently sold by Cummins.



Cummins 7x12 (9/30/03)

I recently learned that Cummins Industrial Tools sells a 7x12 version that appears from the picture on their web site to be the same as the original model 7x12 sold by Homier. Some owners of that model machine liked it better than the more common Sieg brand. I had one myself for awhile and was quite happy with it. So if you have always wanted one of that type, or need replacement parts, this may be the place to get them. As far as I know at this time, no one has identified the original manufacturer of this model.

cummins 7x12.jpg (18672 bytes) Cummins 7x12 (Item #5278)

Here are the specifications posted on their web site:

    Price: $399.99 (as of 09/03)


Busy Bee White Version (Canada)

Here is the elusive white 'Moby Dick' version of the 7x10 (B1979CI) at Busy Bee Tools for CAN $699.00.    They offer both an inch and a metric version.  Check out John Bentley's web site for more info on this version.

Moby Dick 7x10.jpg (6666 bytes) Busy Bee 7x8 Version

Gordon Oliver from Nova Scotia sent me some nice photos of his lathe, it was $725 CND on sale (09/02).

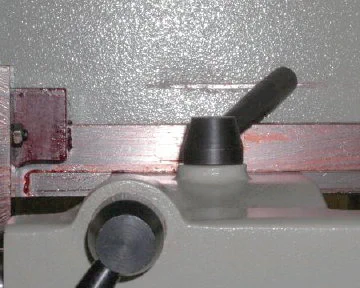

bb_7x8 02.jpg (30014 bytes) bb_7x8 03.jpg (40739 bytes)

Note: although Busy Bee refers to this as a 7x8, I believe it is the same size as the typical 7x10.  Since the 7x12 is 4" longer than the 7x10, one could argue that the 7x10, using the same standards, is really a 7x8.


Grizzly Outlet 7x10 Version

Grizzly once sold a version of the 7x10, but discontinued it as a regular item prior to 1999. They still sell them through their outlet store for around $299.  Reports from users have identified a lot of shortcomings for this version, and that they non-returnable since they are clearance items.  Several owners have reported that components were missing as well as evidence that the machines had been used and abused by prior owners and returned to stock.

Griz outlet 7x10_y.jpg (26487 bytes)  Photo credit: Frank Black

Here's some more info posted by W.J Ward on the Grizzly Outlet 7x10:

I can add a little bit more in regard to the Grizzly 7x10 from their outlet store. It is an older model. Plastic change gears. One open end wrench for tailstock lock nut (i.e. does not include the one for the chuck nuts). Dead center. Tailstock can not be set over (fixed). Three holes in spindle plate (use of the J&L 3" 4-jaw would require more holes). MT3 headstock spindle taper. MT2 tailstock. No graduations on tailstock spindle. No graduations on handle. Plastic handles. No manual. No cover on the change gears. 3-jaw scroll chuck included. Chip tray on mine was smashed at the headstock end. Obviously someone dropped it. Came in cardboard box with moulded styrofoam. Lots of grease, chips, and surface grinding dust in nooks and crannies. I would have been very disappointed if I had bought this for the full price of $495.

And some comments by Frank Black about his experience:

Hi all, I've been lurking and saving for a while and finally purchased
a Griz outlet 7X10 for $299 (got impatient on the saving end). It
arrived about two weeks ago and upon opening the box I found a loose
collection of parts. After "some assembly required" I came up with
this (pic1). Yes, the leadscrew was in the box but it was missing the
right hand pillow block.

Apparently I was not the first owner of the beast as someone had
decided the underside of the front ways needed ground and what better
tool for the job than the trusty Sears angle grinder. (pics 2 and 3)

The moral here is to be fully informed if you choose to go this route.


Other Versions

Bruce Simpson lives 'down under' and has a version of the 7x10 that is similar to that sold by Harbor Freight but has different knobs and power supply.  The power supply, handles and front of the tailstock casting look similar to the new SKU#39916 HF version.


Note the CJ9516 designation on the name plate.  This suggests that this model comes from the Sieg Machine Tool factory in Shanghai which uses this style of numbering.

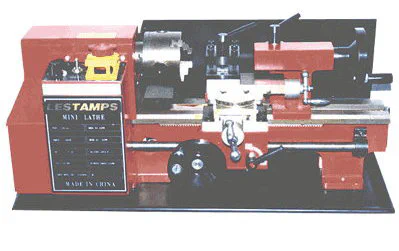

Some other red versions from the Sieg web site:

Sieg red.jpg (13054 bytes)

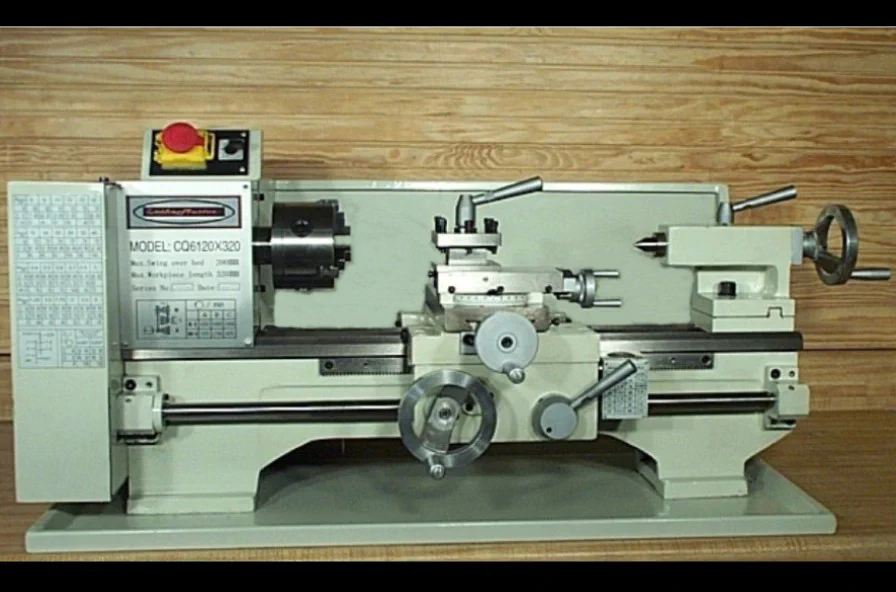

Lathemaster.com 8x14 Lathe (06/17/02)

Photo from lathemaster.com web site

An interesting alternative to the 7x lathes is the  8x14 lathe version offered by lathemaster.com for $679 (as of 09/03). It seems to be a good fit between the 7x lathes and 9x20 class lathes. This may be a good alternative for those who want a somewhat bigger and more robust lathe than the 7x12 and/or a lathe that requires less tuning to be ready for operation.  Although the community of users of this lathe is still relatively small, those who have them have been very happy with the capabilities and performance. Allan Trest has posted some photos and favorable comments on his website. Another excellent source of information on the Lathemaster 8x14 is Dan Kautz's web site.

Here are the specs from the Lathemaster web site:

Swing over Bed: 8 "
Swing over Cross Slide: 4 3/4"
Distance between centers: 14"
Carriage Travel: 12"
Spindle speeds: 6
(125, 210, 450, 620, 1000, 2000 rpm)
Longitudinal Feeds: 2 (.005,.010)
Inch Threads: 12 (8 - 40TPI)
Metric Threads: 12 (.4 - 3mm)
Cross Slide Travel:  4 1/2"
Compound Travel: 2 5/16""
Tailstock Spindle Travel: 2 3/4"
Spindle Bore: 20mm (3/4")
Spindle Taper: MT3
Motor: 3/4 HP, 110V/60Hz
Machine Size: 34"x17 1/2"x17 1/2"
Machine weight: 190lbs.
Shipping weight: 275lbs.

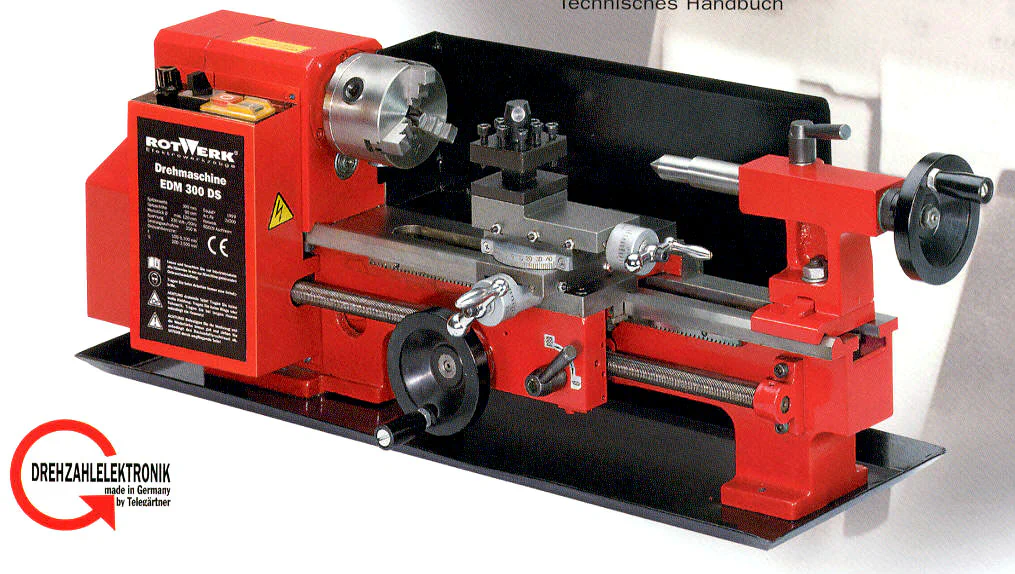

Aus Deutschland: Rotwerk Version

ROTWERK Elektrowerkzeuge

Here's a version of the 7x10 available in Germany. Their web site did not provide much detail, so you will have to contact them for details.
